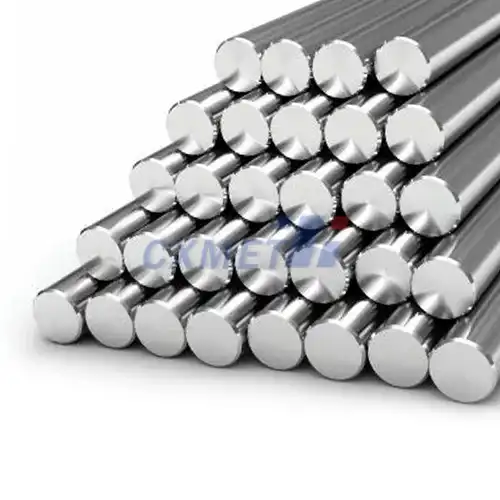

Titanium Rod
The Dia 10mm Titanium Rod in Medical is a high-performance precision product developed by Shaanxi CXMET Technology Co., Ltd. Specifically designed for medical applications, this titanium rod is manufactured with Grade 23 titanium alloy, also known as Ti-6Al-4V ELI (Extra Low Interstitial). It is a premium biocompatible material widely used in orthopedic implants, dental fixtures, and surgical tools.
At Shaanxi CXMET, we combine more than 20 years of experience with advanced manufacturing capabilities to produce high-purity titanium rods that meet stringent international medical standards. Our Dia 10mm Titanium Rod is renowned for its excellent strength-to-weight ratio, low modulus of elasticity, outstanding corrosion resistance, and high biocompatibility.
Biocompatibility: Suitable for long-term contact with human tissue and bone
Extra Low Interstitial content ensures purity and reduced risk of rejection
Excellent tensile and yield strength for structural integrity in implants
Low modulus of elasticity, closer to human bone compared to stainless steel
Corrosion resistance in bodily fluids and harsh sterilization environments
Superior fatigue resistance under cyclic loading conditions
Material Grade: Grade 23 Titanium (Ti-6Al-4V ELI)
Length: Customizable as per client requirement (commonly 100 mm to 1000 mm)
Surface Finish: Polished or machined
Tolerance: h7 to h9 or as specified
Standards: ASTM F136, ISO 5832-3, AMS 4930
Tensile Strength: ≥ 860 MPa
Yield Strength: ≥ 795 MPa
Hardness: Approx. 35 HRC
The 10mm titanium rod is a preferred choice for various critical medical applications including:
Bone fixation and fracture repair
Orthopedic nails and screws
Spinal implants and plates
Dental implants and root posts
Surgical cutting guides
Joint reconstruction components
The Dia 10mm Titanium Rod performs exceptionally in the following conditions:
Continuous exposure to physiological environments
Contact with saline or acidic body fluids
High-pressure load-bearing applications
Extreme sterilization processes including autoclaving
Long-term in vivo implantation
