Product Introduction

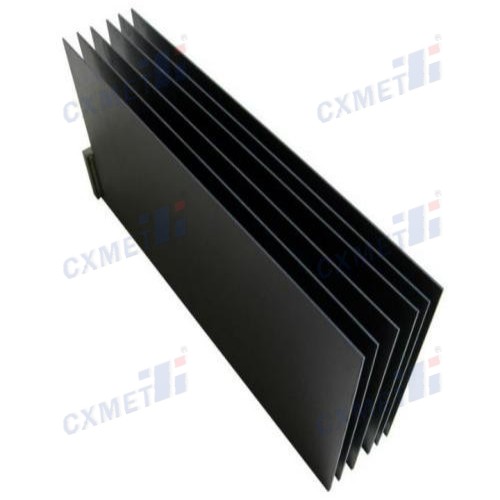

Our platinized titanium electrodes are engineered for exceptional performance in demanding electrochemical applications. These electrodes combine the strength and corrosion resistance of titanium with the catalytic properties of platinum, resulting in a robust and highly efficient electrode solution.
Key Features and Benefits
Superior Catalytic Activity: The platinum coating enhances reaction rates and efficiency.
Excellent Corrosion Resistance: Titanium substrate ensures longevity in harsh environments.
Low Overpotential: Reduces energy consumption in electrochemical processes.
Uniform Coating: Ensures consistent performance across the electrode surface.
Customizable Designs: Available in various shapes and sizes to suit your specific needs.
OEM and Customization Services: Customized Geometries and Exact Dimensions
We offer tailored solutions to meet your unique requirements:
Custom electrode shapes (mesh, plate, rod, tube)
Precise dimensions to fit your equipment
Adjustable platinum coating thickness
Specialized substrate preparation for enhanced adhesion
High purity titanium substrate (Grade 1 or 2)
Platinum coating with 99.99% purity
Uniform platinum distribution
Robust mechanical bonding between platinum and titanium
Extended lifespan compared to traditional electrodes
Technical Specifications
Substrate: Titanium (Grade 1 or 2)
Coating: Platinum (99.99% purity)
Coating thickness: 2.5 – 10 μm (customizable)
Available shapes: Mesh, plate, rod, tube
Standard sizes: 50mm x 100mm to 1000mm x 2000mm (custom sizes available)
Operating temperature: Up to 80°C (higher temperatures possible with custom designs)
Applications and Industries
Our platinized titanium electrodes are widely used in:
Water Treatment: Disinfection, desalination, and wastewater processing
