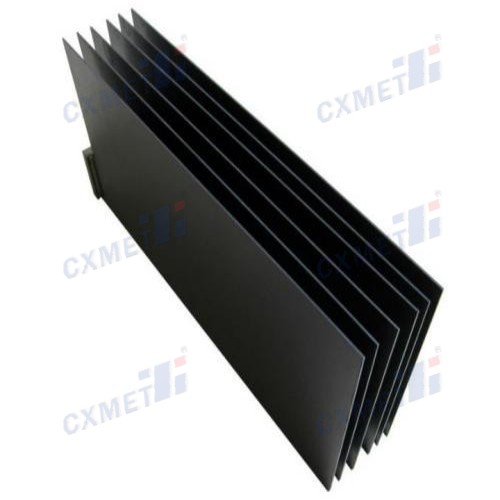

Ruthenium-iridium coated titanium anode

Ruthenium Iridium Titanium Anode

Price depends on specification & quantity. Contact us for a quotation.

Key Features and Benefits

Superior Catalytic Activity: The Ru-Ir coating optimizes electron transfer, enhancing reaction efficiency.

Exceptional Durability: Withstands harsh chemical environments, reducing replacement frequency.

Low Overpotential: Minimizes energy consumption, leading to cost savings in long-term operations.

Uniform Coating: Ensures consistent performance across the entire anode surface.

Customizable Designs: Tailored to fit your specific electrochemical system requirements.

At CXMET, we understand that one size doesn't fit all. Our OEM services allow for:

Custom anode shapes (plates, rods, mesh, expanded metal)

Precise dimensioning to fit your existing equipment

Adjustable Ru-Ir coating ratios for optimized performance

Specialized substrate preparation for enhanced adhesion

High-purity Grade 1 or 2 titanium substrate

Ru-Ir coating thickness: 3-5 μm (customizable)

Excellent conductivity and low contact resistance

Resistant to dimensional changes during operation

Smooth surface finish for uniform current distribution

Standard Sizes: 1000mm x 500mm x 3mm (customizable)

Coating Composition: 30% Ru – 70% Ir (adjustable)

Operating Temperature: Up to 95°C

Current Density: Up to 10 kA/m² (application-dependent)
