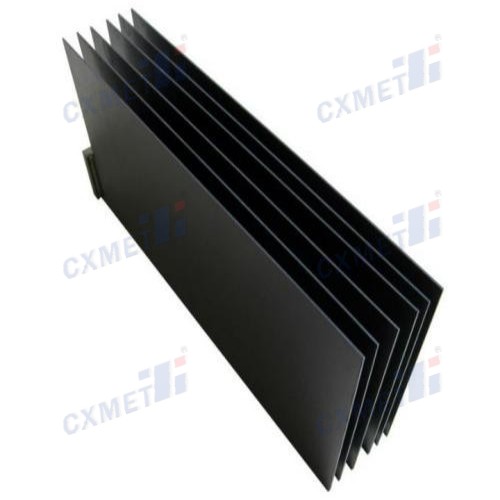

Ruthenium-iridium oxide coated titanium anode
Ruthenium Iridium Titanium Anode
Price depends on specification & quantity. Contact us for a quotation.
Key Features and Benefits
Superior Catalytic Activity: The ruthenium-iridium oxide coating enhances electron transfer, significantly boosting reaction rates and efficiency.
Exceptional Durability: Our anodes resist corrosion and erosion, even in harsh chemical environments, ensuring a long operational lifespan.
Low Overpotential: Achieve higher current densities with less energy input, reducing operational costs.
Uniform Coating: Our advanced manufacturing process ensures even distribution of the catalytic layer, maximizing performance across the entire anode surface.
Customizable Designs: Tailored to fit your specific equipment and process requirements.
OEM and Customization Services: Customized Geometries and Exact Dimensions
At Shaanxi CXMET, we understand that one size doesn't fit all. Our team of experts works closely with you to design and manufacture Ruthenium-iridium oxide coated titanium anodes that perfectly match your specifications:
Custom shapes and sizes
Specialized coating compositions
Varied substrate thicknesses
Unique mounting options
Tailored current density requirements
High oxygen evolution efficiency
Low chlorine evolution
Excellent dimensional stability
Resistance to chemical attack
Minimal maintenance requirements
Consistent performance over time
Technical Specifications
Substrate: Grade 1 or 2 Titanium
Coating: Ruthenium-Iridium Oxide (70:30 ratio)
Coating Thickness: 2-10 μm (customizable)
Operating Current Density: Up to 10 kA/m²
Temperature Range: Up to 95°C
Typical Lifespan: 5-10 years (application-dependent)
Applications and Industries
Our Ruthenium-iridium oxide coated titanium anodes find use in various industrial processes:
Chlor-alkali Production
Water and Wastewater Treatment
Metal Electrowinning
Cathodic Protection Systems
Electroplating and Surface Finishing
Electrochemical Synthesis of Chemicals
Regular inspection and cleaning can extend anode lifespan
